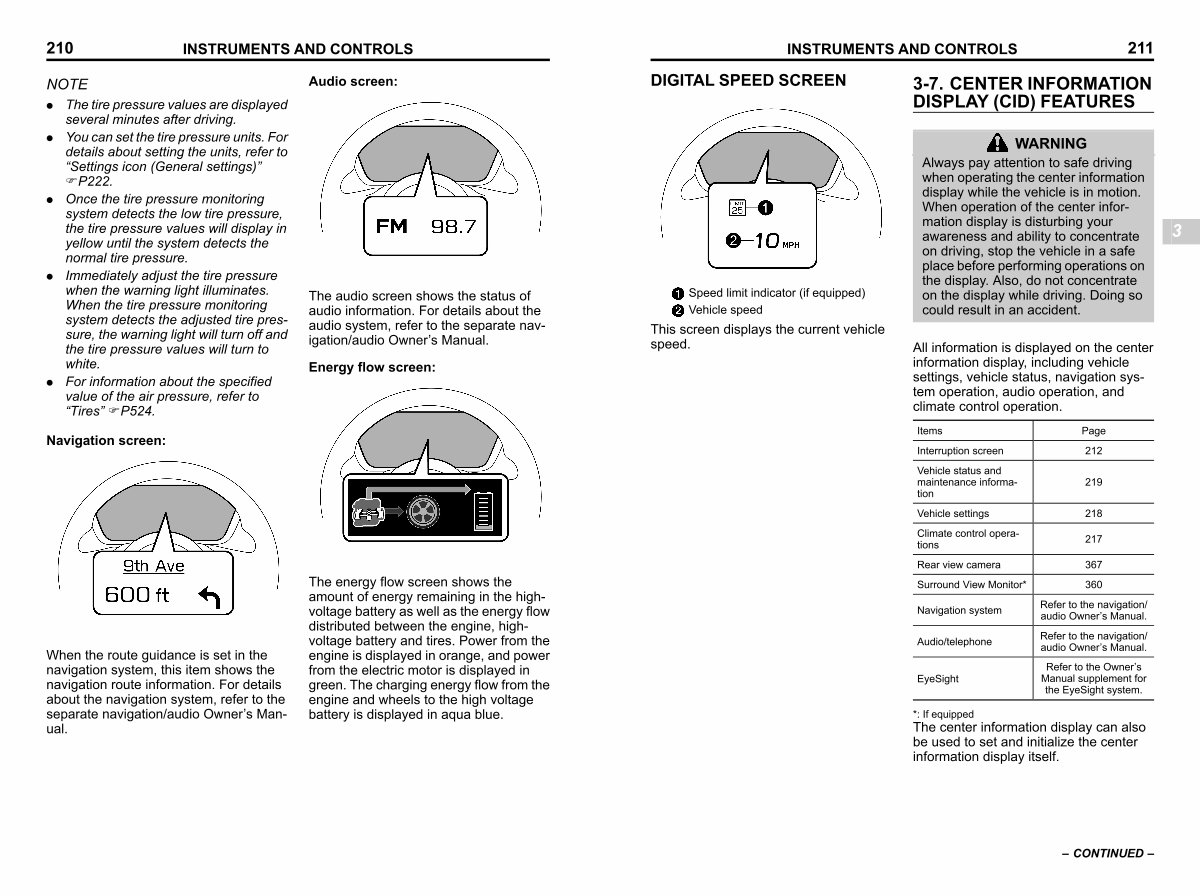

210 INSTRUMENTS AND CONTROLS
NOTE
. The tire pressure values are displayed several minutes after driving.
. You can set the tire pressure units. For details about setting the units, refer to“ Settings icon( General settings)” FP222.
. Once the tire pressure monitoring system detects the low tire pressure, the tire pressure values will display in yellow until the system detects the normal tire pressure.
. Immediately adjust the tire pressure when the warning light illuminates. When the tire pressure monitoring system detects the adjusted tire pressure, the warning light will turn off and the tire pressure values will turn to white.
. For information about the specified value of the air pressure, refer to“ Tires” FP524.
Audio screen:
S _ 308088-W
The audio screen shows the status of audio information. For details about the audio system, refer to the separate navigation / audio Owner’ s Manual.
Energy flow screen:
Navigation screen:
S _ 308089-W
S _ 308087-W
When the route guidance is set in the navigation system, this item shows the navigation route information. For details about the navigation system, refer to the separate navigation / audio Owner’ s Manual.
The energy flow screen shows the amount of energy remaining in the highvoltage battery as well as the energy flow distributed between the engine, highvoltage battery and tires. Power from the engine is displayed in orange, and power from the electric motor is displayed in green. The charging energy flow from the engine and wheels to the high voltage battery is displayed in aqua blue.
