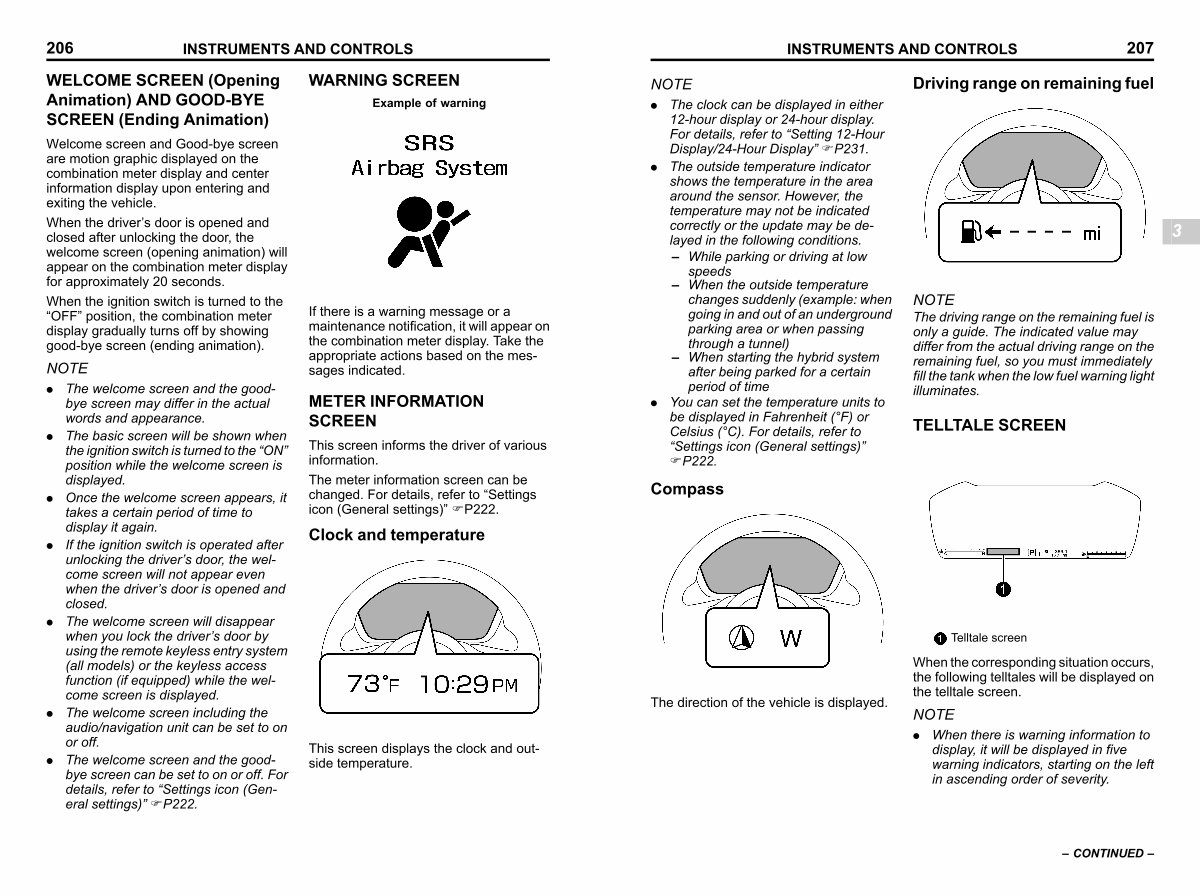

INSTRUMENTS AND CONTROLS 207
NOTE
. The clock can be displayed in either 12-hour display or 24-hour display. For details, refer to“ Setting 12-Hour Display / 24-Hour Display” FP231.
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the hybrid system
after being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to“ Settings icon( General settings)” FP222.
Driving range on remaining fuel s03bn1204
S _ 308258-W
NOTE
The driving range on the remaining fuel is only a guide. The indicated value may differ from the actual driving range on the remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.
TELLTALE SCREEN
s03bn09
3
Compass s03bn1203
S _ 308260-W
Telltale screen
S _ 308257-W
The direction of the vehicle is displayed.
When the corresponding situation occurs, the following telltales will be displayed on the telltale screen.
NOTE
. When there is warning information to display, it will be displayed in five warning indicators, starting on the left in ascending order of severity.
– CONTINUED –
