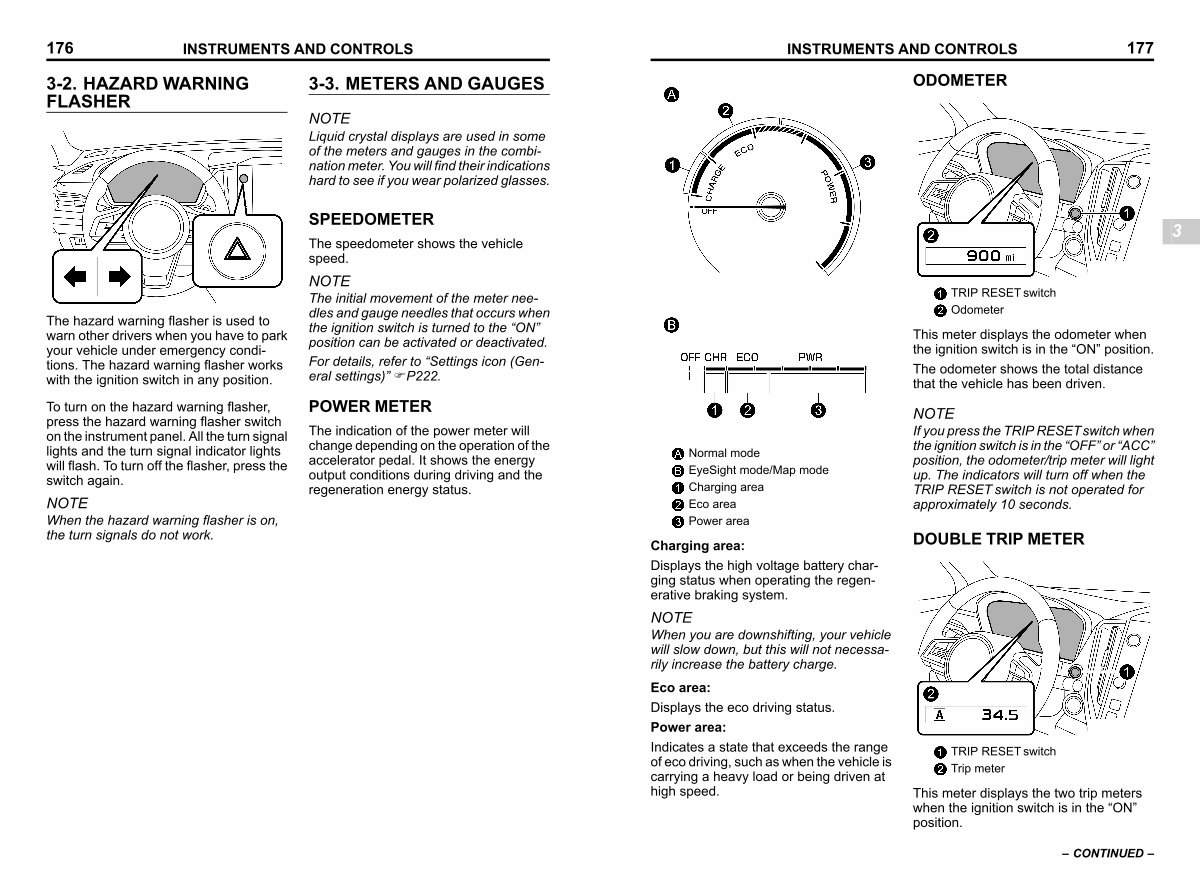

INSTRUMENTS AND CONTROLS 177 ODOMETER s03ad04
3
TRIP RESET switch Odometer
S _ 307896-W
This meter displays the odometer when the ignition switch is in the“ ON” position.
The odometer shows the total distance that the vehicle has been driven.
S _ 308027-W
Normal mode EyeSight mode / Map mode Charging area Eco area Power area
Charging area:
Displays the high voltage battery charging status when operating the regenerative braking system.
NOTE
When you are downshifting, your vehicle will slow down, but this will not necessarily increase the battery charge.
Eco area: Displays the eco driving status. Power area:
Indicates a state that exceeds the range of eco driving, such as when the vehicle is carrying a heavy load or being driven at high speed.
NOTE
If you press the TRIP RESETswitch when the ignition switch is in the“ OFF” or“ ACC” position, the odometer / trip meter will light up. The indicators will turn off when the TRIP RESET switch is not operated for approximately 10 seconds.
DOUBLE TRIP METER
TRIP RESET switch Trip meter s03ad05
S _ 307897-W
This meter displays the two trip meters when the ignition switch is in the“ ON” position.
– CONTINUED –
