Reverse Automatic Braking ( RAB ) system 369 the acquired data to any other third party except under the following conditions .
. The vehicle owner has given his / her consent .
. The disclosure / provision is based on a court order or other legally enforceable request .
. Data that has been modified so that the user and vehicle cannot be identified is provided to a research institution for statistical processing or similar purposes .

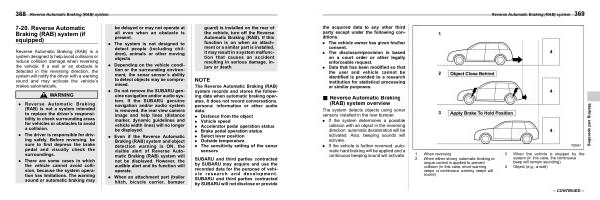

& Reverse Automatic Braking ( RAB ) system overview
|
S07BN01
The system detects objects using sonar
|
sensors installed in the rear bumper . |
. |
If the system determines a possible |
collision with an object in the reversing |
direction , automatic deceleration will be |
activated . Also , beeping sounds will |
activate . |
. |
If the vehicle is further reversed , automatic |
hard braking will be applied and a continuous beeping sound will activate . |
1
2
|
When reversing
When either strong automatic braking or
|
|
|
torque control is applied to prevent collision ( in this case , short warning beeps or continuous warning beeps will sound ) |
3 When the vehicle is stopped by the system ( in this case , the continuous beep will remain sounding )
4 Object ( e . g ., a wall )
Starting and operating
– CONTINUED –
