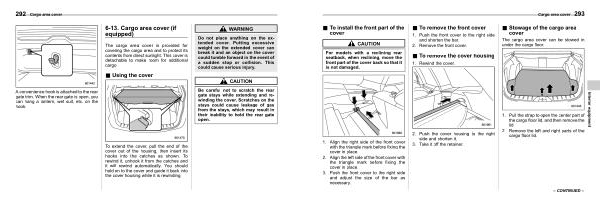

Cargo area cover 293 |
||||||
|
& To install the front part of the cover
S06AK08
CAUTION
For models with a reclining rear seatback , when reclining , move the front part of the cover back so that it is not damaged .
|
& To remove the front cover
S06AK09
1 . Push the front cover to the right side and shorten the bar .
2 . Remove the front cover .
& To remove the cover housing
S06AK02
1 . Rewind the cover .
|
& Stowage of the cargo area cover
S06AK04
The cargo area cover can be stowed in under the cargo floor .
|
||||
|
1 . Align the right side of the front cover with the triangle mark before fixing the cover in place .
2 . Align the left side of the front cover with the triangle mark before fixing the cover in place .
3 . Push the front cover to the right side and adjust the size of the bar as necessary .
|
2 . Push the cover housing to the right side and shorten it .
3 . Take it off the retainer .
|
1 . Pull the strap to open the center part of the cargo floor lid , and then remove the lid .
2 . Remove the left and right parts of the cargo floor lid .
|
Interior equipment |
|||
– CONTINUED – |
