22

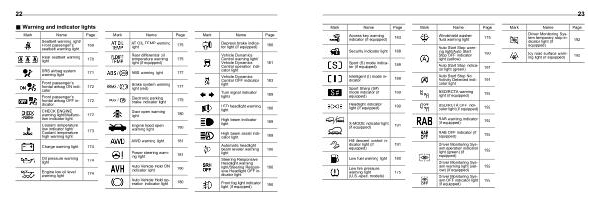

& Warning and indicator lights
S00AE06
Mark Name Page
Seatbelt warning light / Front passenger ’ s seatbelt warning light
Rear seatbelt warning light
SRS airbag system warning light
Front passenger ’ s frontal airbag ON indicator
Front passenger ’ s frontal airbag OFF indicator
CHECK ENGINE warning light / Malfunction indicator light
Coolant temperature low indicator light / Coolant temperature high warning light
168
170
171
172
172
172
173
Charge warning light 174
Oil pressure warning light
Engine low oil level warning light
174
174
Mark Name Page
/
AT OIL TEMP warning light
Rear differential oil temperature warning light ( if equipped )
175
175
ABS warning light 177
Brake system warning light ( red )
Electronic parking brake indicator light
Door open warning light
Engine hood open warning light
177
179
180
180
AWD warning light 181
Power steering warning light
Auto Vehicle Hold ON indicator light
Auto Vehicle Hold operation indicator light
181
180
180
Mark Name Page
Depress brake indicator light ( if equipped )
Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
Vehicle Dynamics Control OFF indicator light
Turn signal indicator lights
LED headlight warning light
High beam indicator light
High beam assist indicator light
Automatic headlight beam leveler warning light
Steering Responsive Headlight warning light / Steering Responsive Headlight OFF indicator light
Front fog light indicator light ( if equipped )
180
181
183
189
190
189
189
190
190
190
