The SRH OFF indicator light on the combination meter illuminates when SRH is turned off .
If SRH is malfunctioning , the SRH OFF indicator light on the combination meter flashes when the ignition switch is in the “ ON ” position . It indicates that SRH has been deactivated . Contact a SUBARU dealer for an inspection .
NOTE
. If you turn the ignition switch to the “ OFF ” position with SRH turned off and then start the engine again , SRH will automatically turn on .
. When you turn the ignition switch to the “ ON ” position , the SRH OFF indicator light will illuminate and turn off after several seconds .
. SRH only activates when the vehicle is traveling forward at the speed of approximately 5 mph ( 8 km / h ) or more .
|

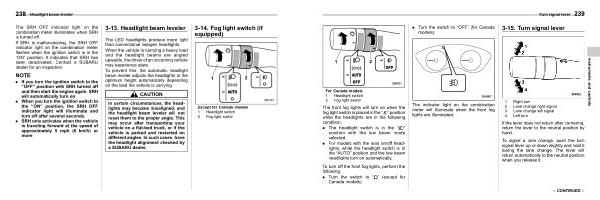

3-13 . Headlight beam leveler
S03AT
The LED headlights produce more light than conventional halogen headlights .
When the vehicle is carrying a heavy load and the headlight beams are angled upwards , the driver of an oncoming vehicle may experience glare .
To prevent this , the automatic headlight beam leveler adjusts the headlights to the optimum height automatically depending on the load the vehicle is carrying .
|
CAUTION
In certain circumstances , the headlights may become misaligned , and the headlight beam leveler will not reset them to the proper angle . This may occur after transporting your vehicle on a flat-bed truck , or if the vehicle is parked and restarted on different angles . In such cases , have the headlight alignment checked by a SUBARU dealer .
|
3-14 . Fog light switch ( if equipped ) |
Except for Canada models 1 Headlight switch 2 Fog light switch |
S03BA |
