208

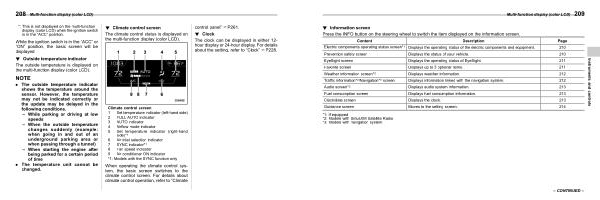

Multi-function display ( color LCD )
*: This is not displayed on the multi-function display ( color LCD ) when the ignition switch is in the “ ACC ” position .
While the ignition switch is in the “ ACC ” or “ ON ” position , the basic screen will be displayed .
! Outside temperature indicator
S03BP1016
The outside temperature is displayed on the multi-function display ( color LCD ).
NOTE
. The outside temperature indicator shows the temperature around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds
– When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel )
– When starting the engine after being parked for a certain period of time
. The temperature unit cannot be changed .
! Climate control screen
S03BP1017
The climate control status is displayed on the multi-function display ( color LCD ).
Climate control screen 1 Set temperature indicator ( left-hand side ) 2 FULL AUTO indicator 3 AUTO indicator 4 Airflow mode indicator 5 Set temperature indicator ( right-hand side )* 1
6 Air inlet selection indicator 7 SYNC indicator * 1 8 Fan speed indicator 9 Air conditioner ON indicator * 1 : Models with the SYNC function only
When operating the climate control system , the basic screen switches to the climate control screen . For details about climate control operation , refer to “ Climate control panel ” FP261 . ! Clock
S03BP1018
The clock can be displayed in either 12- hour display or 24-hour display . For details about the setting , refer to “ Clock ” FP228 .
