SRS airbag ( Supplemental Restraint System airbag ) 83 |
|||

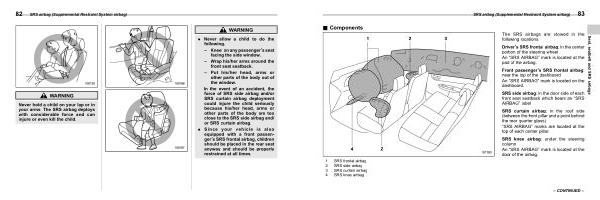

& Components |
S01AH11 |
The SRS airbags are stowed in the following locations .
Driver ’ s SRS frontal airbag : in the center portion of the steering wheel
An “ SRS AIRBAG ” mark is located at the pad of the airbag .
Front passenger ’ s SRS frontal airbag : near the top of the dashboard
An “ SRS AIRBAG ” mark is located on the dashboard .
SRS side airbag : in the door side of each front seat seatback which bears an “ SRS AIRBAG ” label
|
Seat , seatbelt and SRS airbags |
|
SRS curtain airbag : in the roof side ( between the front pillar and a point behind the rear quarter glass )
“ SRS AIRBAG ” marks are located at the top of each center pillar .
|
|||
|
SRS knee airbag : under the steering column
An “ SRS AIRBAG ” mark is located at the door of the airbag .
|
|||
1 SRS frontal airbag 2 SRS side airbag 3 SRS curtain airbag 4 SRS knee airbag |
|||
– CONTINUED – |
