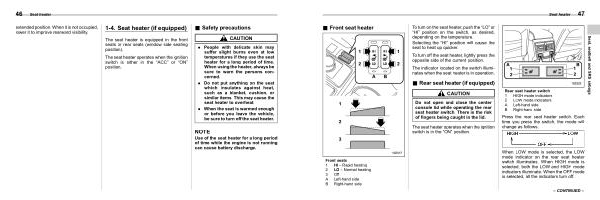

Seat heater 47 |
||||||||
& Front seat heater |
S01AB05 |
To turn on the seat heater , push the “ LO ” or “ HI ” position on the switch , as desired , depending on the temperature .
Selecting the “ HI ” position will cause the seat to heat up quicker .
To turn off the seat heater , lightly press the opposite side of the current position .
The indicator located on the switch illuminates when the seat heater is in operation .
& Rear seat heater ( if equipped )
S01AB06
CAUTION
|
Do not open and close the center console lid while operating the rear seat heater switch . There is the risk of fingers being caught in the lid .
The seat heater operates when the ignition switch is in the “ ON ” position .
|
Rear seat heater switch 1 HIGH mode indicators 2 LOW mode indicators A Left-hand side B Right-hand side
Press the rear seat heater switch . Each time you press the switch , the mode will change as follows .
|
Seat , seatbelt and SRS airbags |
|||
Front seats 1 HI – Rapid heating 2 LO – Normal heating 3 Off A Left-hand side B Right-hand side |
When LOW mode is selected , the LOW mode indicator on the rear seat heater switch illuminates . When HIGH mode is selected , both the LOW and HIGH mode indicators illuminate . When the OFF mode is selected , all the indicators turn off . |
|||||||
– CONTINUED – |
