490
Replacing key battery
swallow them .
. There is a danger of an explosion if the battery is incorrectly replaced . Replace only with the same or equivalent type of the battery .
. Batteries should not be exposed to excessive heat such as bright sunlight , fire or the like .
NOTE
. Replace only with the same or equivalent type of battery recommended by the manufacturer .
. Dispose of used batteries according to local laws .
. Mount the battery in the correct orientation to prevent fluid leakage . Be careful not to bend the terminals . It may result in a malfunction .
. It is recommended that the battery be replaced by a SUBARU dealer . . Use a new battery . . After replacing the battery , confirm that the transmitter functions properly .

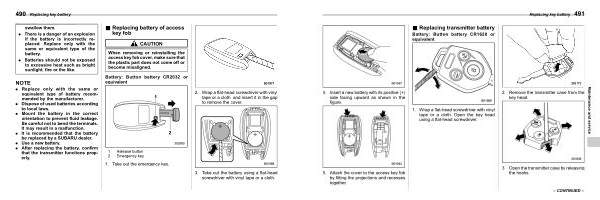

& Replacing battery of access key fob
S11BK01
CAUTION
When removing or reinstalling the access key fob cover , make sure that the plastic part does not come off or become misaligned .
Battery : Button battery CR2032 or equivalent
1 Release button 2 Emergency key
1 . Take out the emergency key .
2 . Wrap a flat-head screwdriver with vinyl tape or a cloth , and insert it in the gap to remove the cover .
3 . Take out the battery using a flat-head screwdriver with vinyl tape or a cloth .
