484

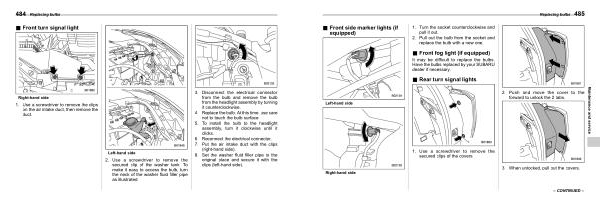

Replacing bulbs
& Front turn signal light
S11BE55
Right-hand side
1 . Use a screwdriver to remove the clips on the air intake duct , then remove the duct .
Left-hand side
2 . Use a screwdriver to remove the secured clip of the washer tank . To make it easy to access the bulb , turn the neck of the washer fluid filler pipe as illustrated .
3 . Disconnect the electrical connector from the bulb and remove the bulb from the headlight assembly by turning it counterclockwise .
4 . Replace the bulb . At this time , use care not to touch the bulb surface .
5 . To install the bulb to the headlight assembly , turn it clockwise until it clicks .
6 . Reconnect the electrical connector .
7 . Put the air intake duct with the clips ( right-hand side ).
8 . Set the washer fluid filler pipe to the original place and secure it with the clips ( left-hand side ).
