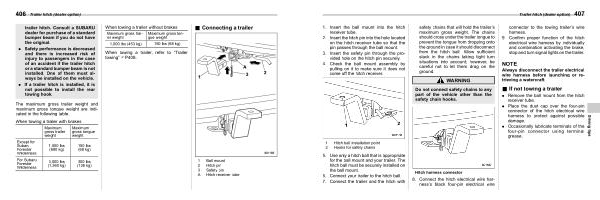

Trailer hitch ( dealer option ) 407 |
|||||
1 . Insert the ball mount into the hitch receiver tube .
2 . Insert the hitch pin into the hole located on the hitch receiver tube so that the pin passes through the ball mount .
3 . Insert the safety pin through the provided hole on the hitch pin securely .
4 . Check the ball mount assembly by pulling on it to make sure it does not come off the hitch receiver .
1 Hitch ball installation point 2 Hooks for safety chains
|
safety chains that will hold the trailer ’ s maximum gross weight . The chains should cross under the trailer tongue to prevent the tongue from dropping onto the ground in case it should disconnect from the hitch ball . Allow sufficient slack in the chains taking tight turn situations into account ; however , be careful not to let them drag on the ground .
WARNING
Do not connect safety chains to any part of the vehicle other than the safety chain hooks .
|
connector to the towing trailer ’ s wire harness .
9 . Confirm proper function of the hitch electrical wire harness by individually and combination activating the brake , stop and turn signal lights on the trailer .
NOTE
Always disconnect the trailer electrical wire harness before launching or retrieving a watercraft .
& If not towing a trailer
S08AK02
. Remove the ball mount from the hitch receiver tube .
. Place the dust cap over the four-pin connector of the hitch electrical wire harness to protect against possible damage .
. Occasionally lubricate terminals of the four-pin connector using terminal grease .
|
Driving tips |
||
5 . Use only a hitch ball that is appropriate for the ball mount and your trailer . The hitch ball must be securely installed on the ball mount .
6 . Connect your trailer to the hitch ball . 7 . Connect the trailer and the hitch with
|
Hitch harness connector
8 . Connect the hitch electrical wire harness ’ s black four-pin electrical wire
|
