354
BSD / RCTA
. While the Vehicle Dynamics Control warning light is illuminated . Refer to “ Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light ” FP179 .
. While the Auto Start Stop warning light is illuminated . Refer to “ Auto Start Stop warning light / Auto Start Stop OFF indicator light ( yellow )” FP187 .
When using the Hill start assist system , a braking effect may be felt even after the brake pedal has been released .
CAUTION
The braking power of the Hill start assist system may not be sufficient when strong braking power is needed ( e . g ., when towing a trailer ).
NOTE
A slight jolt may be felt when the vehicle begins to move forward after being reversed .

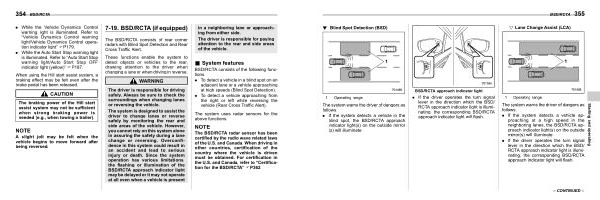

7-19 . BSD / RCTA ( if equipped )
S07BM
The BSD / RCTA consists of rear corner radars with Blind Spot Detection and Rear Cross Traffic Alert .
These functions enable the system to detect objects or vehicles to the rear , drawing attention to the driver when changing a lane or when driving in reverse .
WARNING
The driver is responsible for driving safely . Always be sure to check the surroundings when changing lanes or reversing the vehicle .
The system is designed to assist the driver to change lanes or reverse safely by monitoring the rear and side areas of the vehicle . However , you cannot rely on this system alone in assuring the safety during a lane change or reversing . Overconfidence in this system could result in an accident and lead to serious injury or death . Since the system operation has various limitations , the flashing or illumination of the BSD / RCTA approach indicator light may be delayed or it may not operate at all even when a vehicle is present
in a neighboring lane or approaching from either side .
The driver is responsible for paying attention to the rear and side areas of the vehicle .
& System features
S07BM01
BSD / RCTA consists of the following functions .
. To detect a vehicle in a blind spot on an adjacent lane or a vehicle approaching at high speeds ( Blind Spot Detection ).
. To detect a vehicle approaching from the right or left while reversing the vehicle ( Rear Cross Traffic Alert ).
The system uses radar sensors for the above functions .
NOTE
The BSD / RCTA radar sensor has been certified by the radio wave related laws of the U . S . and Canada . When driving in other countries , certification of the country where the vehicle is driven must be obtained . For certification in the U . S . and Canada , refer to “ Certification for the BSD / RCTA ” FP362 .
