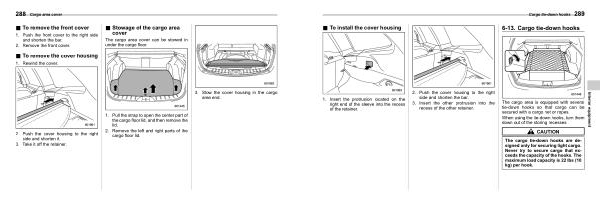

& To install the cover housing
S06AK05
|
6-13 . Cargo tie-down hooks
S06AM
|
|||||||
1 . Insert the protrusion located on the right end of the sleeve into the recess of the retainer . |
2 . Push the cover housing to the right side and shorten the bar .
3 . Insert the other protrusion into the recess of the other retainer .
|
The cargo area is equipped with several tie-down hooks so that cargo can be secured with a cargo net or ropes .
When using the tie-down hooks , turn them down out of the storing recesses .
CAUTION
|
Interior equipment |
|||||
The cargo tie-down hooks are designed only for securing light cargo . Never try to secure cargo that exceeds the capacity of the hooks . The maximum load capacity is 22 lbs ( 10 kg ) per hook . |
