22

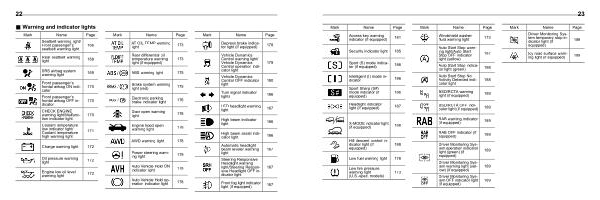

& Warning and indicator lights
S00AE06
Mark Name Page
Seatbelt warning light / Front passenger ’ s seatbelt warning light
Rear seatbelt warning light
SRS airbag system warning light
Front passenger ’ s frontal airbag ON indicator
Front passenger ’ s frontal airbag OFF indicator
CHECK ENGINE warning light / Malfunction indicator light
Coolant temperature low indicator light / Coolant temperature high warning light
166
168
169
170
170
170
171
Charge warning light 172
Oil pressure warning light
Engine low oil level warning light
172
172
Mark Name Page
/
AT OIL TEMP warning light
Rear differential oil temperature warning light ( if equipped )
173
173
ABS warning light 175
Brake system warning light ( red )
Electronic parking brake indicator light
Door open warning light
Engine hood open warning light
175
176
178
178
AWD warning light 178
Power steering warning light
Auto Vehicle Hold ON indicator light
Auto Vehicle Hold operation indicator light
179
178
178
Mark Name Page
Depress brake indicator light ( if equipped )
Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
Vehicle Dynamics Control OFF indicator light
Turn signal indicator lights
LED headlight warning light
High beam indicator light
High beam assist indicator light
Automatic headlight beam leveler warning light
Steering Responsive Headlight warning light / Steering Responsive Headlight OFF indicator light
Front fog light indicator light ( if equipped )
178
179
180
186
187
186
186
187
187
187
