258

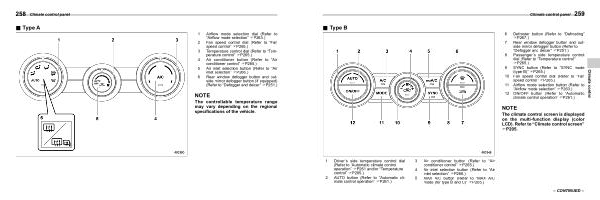

Climate control panel
& Type A
S04AG01
1 Airflow mode selection dial ( Refer to “ Airflow mode selection ” FP263 .)
2 Fan speed control dial ( Refer to “ Fan speed control ” FP265 .)
3 Temperature control dial ( Refer to “ Temperature control ” FP265 .)
4 Air conditioner button ( Refer to “ Air conditioner control ” FP265 .)
5 Air inlet selection button ( Refer to “ Air inlet selection ” FP266 .)
6 Rear window defogger button and outside mirror defogger button ( if equipped ) ( Refer to “ Defogger and deicer ” FP251 .)
NOTE
The controllable temperature range may vary depending on the regional specifications of the vehicle .
