234
Steering Responsive Headlight ( SRH )
The daytime running lights will automatically illuminate when the following conditions are fulfilled .
. The engine is running . . The parking brake is fully released .
. The light control switch is in “ AUTO ” ( if equipped ), “ ” or “ ” ( except for Canada models ).
. The light control switch is in “ AUTO ”, “ ” or “ OFF ” ( for Canada models ).
. The select lever is in a position other than the “ P ” position .
NOTE
When the light switch is in the “ ” position , the instrument panel illumination , front side marker lights , tail lights and license plate lights are also illuminated .

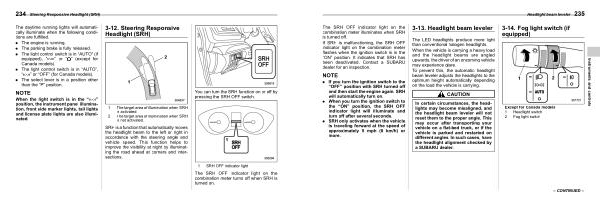

3-12 . Steering Responsive Headlight ( SRH )
S03BL
1 The target area of illumination when SRH is activated .
2 The target area of illumination when SRH is not activated .
SRH is a function that automatically moves the headlight beam to the left or right in accordance with the steering angle and vehicle speed . This function helps to improve the visibility at night by illuminating the road ahead at corners and intersections .
You can turn the SRH function on or off by pressing the SRH OFF switch .
1 SRH OFF indicator light
The SRH OFF indicator light on the combination meter turns off when SRH is turned on .
