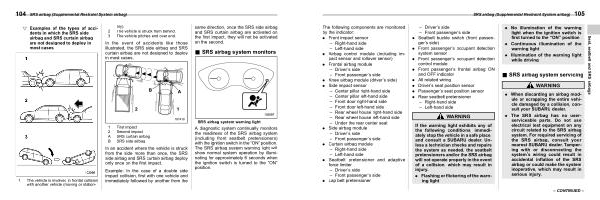

The following components are monitored by the indicator :
. Front impact sensor – Right-hand side – Left-hand side
. Airbag control module ( including impact sensor and rollover sensor )
. Frontal airbag module – Driver ’ s side – Front passenger ’ s side . Knee airbag module ( driver ’ s side ) . Side impact sensor – Center pillar right-hand side – Center pillar left-hand side – Front door right-hand side – Front door left-hand side – Rear wheel house right-hand side – Rear wheel house left-hand side – Under the rear center seat
. Side airbag module – Driver ’ s side – Front passenger ’ s side
. Curtain airbag module – Right-hand side – Left-hand side
. Seatbelt pretensioner and adaptive force limiter – Driver ’ s side – Front passenger ’ s side
. Lap belt pretensioner
|
– Driver ’ s side – Front passenger ’ s side
. Seatbelt buckle switch ( front passenger ’ s side )
. Front passenger ’ s occupant detection system sensor
. Front passenger ’ s occupant detection control module
. Front passenger ’ s frontal airbag ON and OFF indicator
. All related wiring . Driver ’ s seat position sensor . Passenger ’ s seat position sensor . Rear seatbelt pretensioner – Right-hand side – Left-hand side
|
WARNING
If the warning light exhibits any of the following conditions , immediately stop the vehicle in a safe place , and consult a SUBARU dealer . Unless a technician checks and repairs the system as needed , the seatbelt pretensioners and / or the SRS airbag will not operate properly in the event of a collision , which may result in injury .
. Flashing or flickering of the warning light
|
. No illumination of the warning light when the ignition switch is first turned to the “ ON ” position
. Continuous illumination of the warning light
. Illumination of the warning light while driving
& SRS airbag system servicing
S01AH05
WARNING
. When discarding an airbag module or scrapping the entire vehicle damaged by a collision , consult your SUBARU dealer .
. The SRS airbag has no userserviceable parts . Do not use electrical test equipment on any circuit related to the SRS airbag system . For required servicing of the SRS airbag , consult your nearest SUBARU dealer . Tampering with or disconnecting the system ’ s wiring could result in accidental inflation of the SRS airbag or could make the system inoperative , which may result in serious injury .
|
