Pre-Collision Braking System

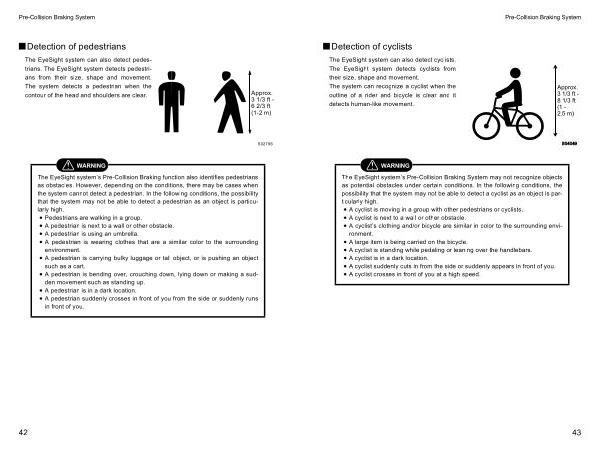

■ Detection of cyclists
The EyeSight system can also detect cyclists . The EyeSight system detects cyclists from their size , shape and movement . The system can recognize a cyclist when the outline of a rider and bicycle is clear and it detects human-like movement .
Approx . 3 1 / 3 ft - 8 1 / 3 ft ( 1 - 2.5 m )
S04049
WARNING
The EyeSight system ’ s Pre-Collision Braking System may not recognize objects as potential obstacles under certain conditions . In the following conditions , the possibility that the system may not be able to detect a cyclist as an object is particularly high .
• A cyclist is moving in a group with other pedestrians or cyclists .
• A cyclist is next to a wall or other obstacle .
• A cyclist ’ s clothing and / or bicycle are similar in color to the surrounding environment .
• A large item is being carried on the bicycle .
• A cyclist is standing while pedaling or leaning over the handlebars .
• A cyclist is in a dark location .
• A cyclist suddenly cuts in from the side or suddenly appears in front of you .
• A cyclist crosses in front of you at a high speed .
43
