( 2 )
( 3 )
( 4 ) ( 5 )
( 6 )
( 8 ) ( 9 )
|
( 7 ) |
( 18 ) ( 17 ) ( 16 ) ( 15 )
( 14 ) ( 13 ) ( 12 ) ( 11 )
|
( 10 )
( 19 )
|
( 20 ) |
( 1 ) |

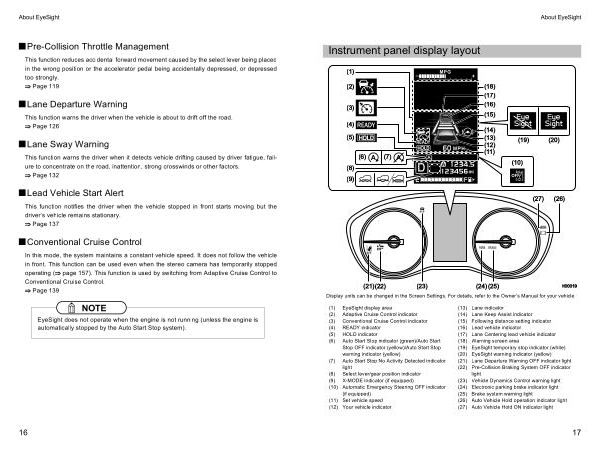

EyeSight display area |
( 2 ) |
Adaptive Cruise Control indicator |
( 3 ) |
Conventional Cruise Control indicator |
( 4 ) |
READY indicator |
( 5 ) |
HOLD indicator |
( 6 ) |
Auto Start Stop indicator ( green )/ Auto Start |
Stop OFF indicator ( yellow )/ Auto Start Stop | |
warning indicator ( yellow ) | |
( 7 ) |
Auto Start Stop No Activity Detected indicator |
light | |
( 8 ) |
Select lever / gear position indicator |
( 9 ) |
X-MODE indicator ( if equipped ) |
( 10 ) |
Automatic Emergency Steering OFF indicator |
( if equipped ) | |
( 11 ) |
Set vehicle speed |
( 12 ) |
Your vehicle indicator |
( 13 ) |
Lane indicator |
( 14 ) |
Lane Keep Assist indicator |
( 15 ) |
Following distance setting indicator |
( 16 ) |
Lead vehicle indicator |
( 17 ) |
Lane Centering lead vehicle indicator |
( 18 ) |
Warning screen area |
( 19 ) |
EyeSight temporary stop indicator ( white ) |
( 20 ) |
EyeSight warning indicator ( yellow ) |
( 21 ) |
Lane Departure Warning OFF indicator light |
( 22 ) |
Pre-Collision Braking System OFF indicator |
light | |
( 23 ) |
Vehicle Dynamics Control warning light |
( 24 ) |
Electronic parking brake indicator light |
( 25 ) |
Brake system warning light |
( 26 ) |
Auto Vehicle Hold operation indicator light |
( 27 ) |
Auto Vehicle Hold ON indicator light |
