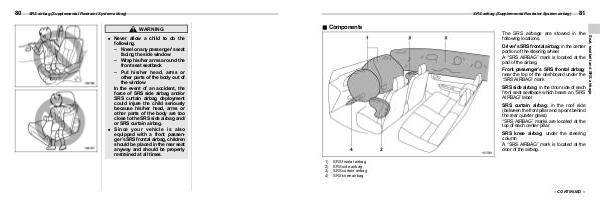

SRS airbag (Supplemental Restraint System airbag)
81
& Components
S01AH11
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
A “SRS AIRBAG” mark is located at the
pad of the airbag.
Front passenger’s SRS frontal airbag:
near the top of the dashboard under the
“SRS AIRBAG” mark
SRS side airbag: in the door side of each
front seat seatback which bears an “SRS
AIRBAG” label
SRS curtain airbag: in the roof side
(between the front pillar and a point behind
the rear quarter glass)
“SRS AIRBAG” marks are located at the
top of each center pillar.
SRS knee airbag: under the steering
column
A “SRS AIRBAG” mark is located at the
door of the airbag.
1)
2)
3)
4)
SRS frontal airbag
SRS side airbag
SRS curtain airbag
SRS knee airbag
– CONTINUED –
The SRS airbags are stowed in the
following locations.
