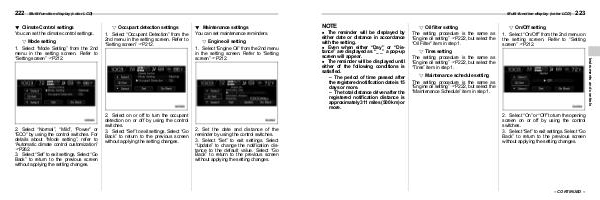

Multi-function display (color LCD)
NOTE
! Oil filter setting
S03BP280302
The setting procedure is the same as
“Engine oil setting” FP222, but select the
“Oil Filter” item in step 1.
! On/Off setting
S03BP280305
1. Select “On/Off” from the 2nd menu on
the setting screen. Refer to “Setting
screen” FP212.
! Tires setting
S03BP280303
The setting procedure is the same as
“Engine oil setting” FP222, but select the
“Tires” item in step 1.
. The reminder will be displayed by
either date or distance in accordance
with the setting.
. Even when either “Day” or “Dis-
tance” are displayed as “_ _” a pop-up
screen will appear.
. The reminder will be displayed until
either of the following conditions is
satisfied.
– The period of time passed after
the registered notification date is 15
days or more.
– The total distance driven after the
registered notification distance is
approximately 311 miles (500 km) or
more.
223
! Maintenance schedule setting
S03BP280304
The setting procedure is the same as
“Engine oil setting” FP222, but select the
“Maintenance Schedule” item in step 1.
2. Select “On” or “Off” to turn the opening
screen on or off by using the control
switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.
– CONTINUED –
