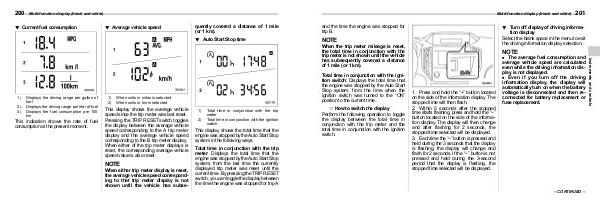

Multi-function display (black and white)
and the time the engine was stopped for
trip B.
! Turn off display of driving informa-
tion display
S03BO0906
Select the blank space in the menu to exit
the driving information display selection.
NOTE
When the trip meter mileage is reset,
the total time in conjunction with the
trip meter is not shown until the vehicle
has subsequently covered a distance
of 1 mile (or 1 km).
! How to switch the display
S03BO090701
Perform the following operation to toggle
the display between the total time in
conjunction with the trip meter and the
total time in conjunction with the ignition
switch.
NOTE
1. Press and hold the “+” button located
on the side of the information display. The
stopped time will then flash.
2. Within 5 seconds after the stopped
time starts flashing, press and hold the “−”
button located on the side of the informa-
tion display. The display will then change
and after flashing for 2 seconds, the
stopped time selected will be displayed.
3. Each time the “−” button is pressed and
held during the 3 seconds that the display
is flashing, the display will change and
flash for 2 seconds. If the “−” button is not
pressed and held during the 3-second
period that the display is flashing, the
stopped time selected will be displayed.
. The average fuel consumption and
average vehicle speed are calculated
even while the driving information dis-
play is not displayed.
. Even if you turn off the driving
information display, the display will
automatically turn on when the battery
voltage is disconnected and then re-
connected for battery replacement or
fuse replacement.
– CONTINUED –
Total time in conjunction with the igni-
tion switch: Displays the total time that
the engine was stopped by the Auto Start
Stop system, from the time when the
ignition switch was turned to the “ON”
position to the current time.
201
