194

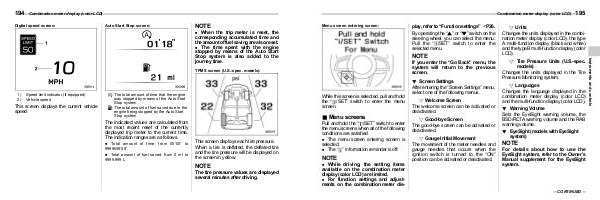

Combination meter display (color LCD)
Digital speed screen:
Auto Start Stop screen:
NOTE
. When the trip meter is reset, the
corresponding accumulated time and
the amount of fuel saving are also reset.
. The time spent with the engine
stopped by means of the Auto Start
Stop system is also added to the
journey time.
TPMS screen (U.S.-spec. models):
1)
2)
Speed limit indicator (if equipped)
Vehicle speed
This screen displays the current vehicle
speed.
: The total amount of time that the engine
was stopped by means of the Auto Start
Stop system
: The total amount of fuel saved due to the
engine being stopped by the Auto Start
Stop system
The indicated values are calculated from
the most recent reset of the currently
displayed trip meter to the current time.
The indication ranges are as follows.
. Total amount of time: from 00’00” to
9999h59’59”
. Total amount of fuel saved: from 0 ml to
9999.999 L
This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.
NOTE
The tire pressure values are displayed
several minutes after driving.
