138
Windows
2-8. Windows
S02AH
WARNING
To avoid serious personal injury
caused by entrapment, always con-
form to the following instructions
without exception.
. When operating the power win-
dows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.
. Always lock the passengers’ win-
dows using the lock switch when
children are riding in the vehicle.
. Always carry the key when you
leave the vehicle for safety rea-
sons and never allow an unat-
tended child to remain in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window.
NOTE
. If the power window system detects
resistance, an impact or abnormality,
the window operation may be automa-
tically stopped to prevent further jam-
ming, entrapment or malfunction.
– The closing window slides down
slightly and stops.
– The opening window stops slid-
ing down.
. The power window system may
detect resistance, an impact or an
abnormality in the following cases.
– A substantial sized object is
caught between the window and
the window frame.
– A foreign object is caught be-
tween the window and the window
frame.
– The vehicle drives over a deep
pothole.
. The window cannot be closed for a
few seconds after the window is auto-
matically stopped by the system.
& Power window operation
S02AH07
! Power window switches
S02AH0701

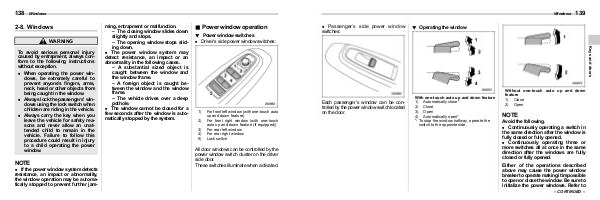

. Driver’s side power window switches:
1)
2)
3)
4)
5)
For front left window (with one-touch auto
up and down feature)
For front right window (with one-touch
auto up and down feature (if equipped))
For rear left window
For rear right window
Lock switch
All door windows can be controlled by the
power window switch cluster on the driver
side door.
These switches illuminate when activated.
