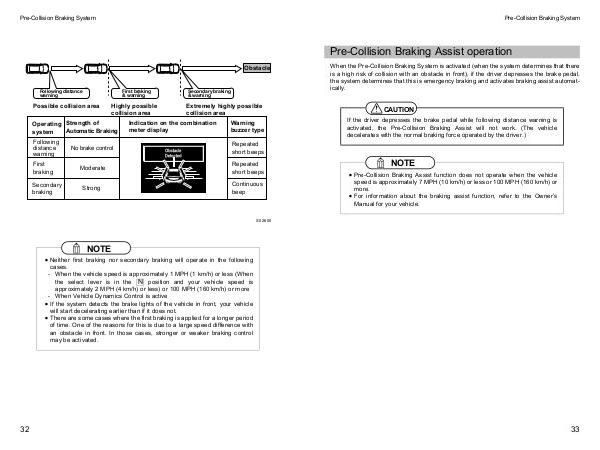

Pre-Collision Braking System
Obstacle
First braking
& warning
Following distance
warning
Possible collision area
Highly possible
collision area
Operating Strength of
Automatic Braking
system
Following
distance
warning
First
braking
Secondary
braking
Secondary braking
& warning
Extremely highly possible
collision area
Indication on the combination
meter display
Warning
buzzer type
No brake control Repeated
short beeps
Moderate Repeated
short beeps
Strong Continuous
beep
S02600
NOTE
x Neither first braking nor secondary braking will operate in the following
cases.
- When the vehicle speed is approximately 1 MPH (1 km/h) or less (When
the select lever is in the N position and your vehicle speed is
approximately 2 MPH (4 km/h) or less) or 100 MPH (160 km/h) or more
- When Vehicle Dynamics Control is active
x If the system detects the brake lights of the vehicle in front, your vehicle
will start decelerating earlier than if it does not.
x There are some cases where the first braking is applied for a longer period
of time. One of the reasons for this is due to a large speed difference with
an obstacle in front. In those cases, stronger or weaker braking control
may be activated.
32
