About EyeSight

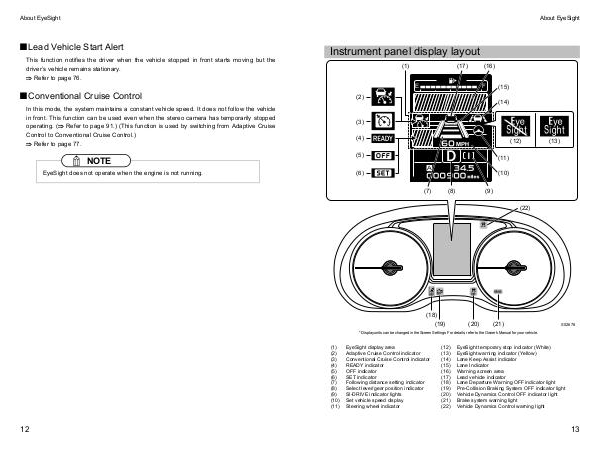

Instrument panel display layout
(17)
(1)
(16)
E
(15)
F
(2)
(14)
km/h
(3)
(4)
(12)
(5)
(6)
(13)
(11)
A
(10)
(7)
(9)
(8)
(22)
(18)
(19)
(20)
(21)
S02678
* Display units can be changed in the Screen Settings. For details, refer to the Owner’s Manual for your vehicle.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
EyeSight display area
Adaptive Cruise Control indicator
Conventional Cruise Control indicator
READY indicator
OFF indicator
SET indicator
Following distance setting indicator
Select lever/gear position indicator
SI-DRIVE indicator lights
Set vehicle speed display
Steering wheel indicator
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
EyeSight temporary stop indicator (White)
EyeSight warning indicator (Yellow)
Lane Keep Assist indicator
Lane Indicator
Warning screen area
Lead vehicle indicator
Lane Departure Warning OFF indicator light
Pre-Collision Braking System OFF indicator light
Vehicle Dynamics Control OFF indicator light
Brake system warning light
Vehicle Dynamics Control warning light
13
