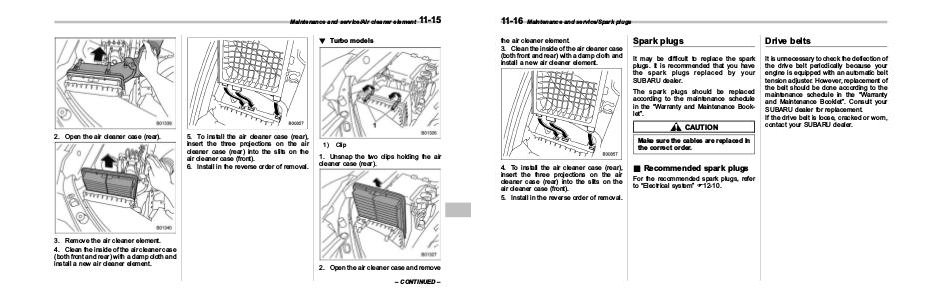

Maintenance and service/Air cleaner element
11-15
! Turbo models
2. Open the air cleaner case (rear).
3. Remove the air cleaner element.
4. Clean the inside of the air cleaner case
(both front and rear) with a damp cloth and
install a new air cleaner element.
5. To install the air cleaner case (rear),
insert the three projections on the air
cleaner case (rear) into the slits on the
air cleaner case (front).
6. Install in the reverse order of removal.
1)
Clip
1. Unsnap the two clips holding the air
cleaner case (rear).
2. Open the air cleaner case and remove
– CONTINUED –
