Climate control / Climate control panel
4-5

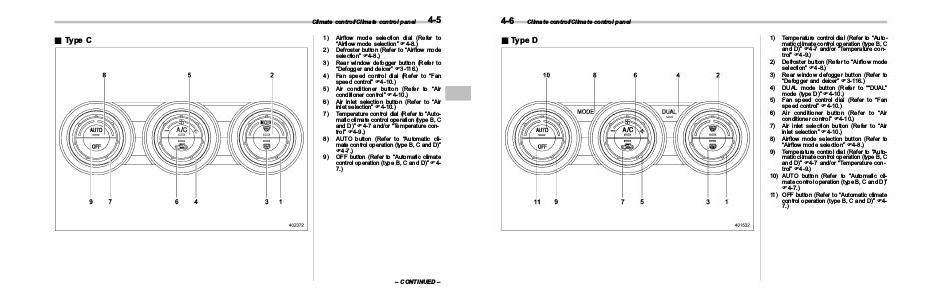

& Type C
1) Airflow mode selection dial( Refer to“ Airflow mode selection” F4-8.)
2) Defroster button( Refer to“ Airflow mode selection” F4-8.)
3) Rear window defogger button( Refer to“ Defogger and deicer” F3-116.)
4) Fan speed control dial( Refer to“ Fan speed control” F4-10.)
5) Air conditioner button( Refer to“ Air conditioner control” F4-10.)
6) Air inlet selection button( Refer to“ Air inlet selection” F4-10.)
7) Temperature control dial( Refer to“ Automatic climate control operation( type B, C and D)” F4-7 and / or“ Temperature control” F4-9.)
8) AUTO button( Refer to“ Automatic climate control operation( type B, C and D)” F4-7.)
9) OFF button( Refer to“ Automatic climate control operation( type B, C and D)” F4- 7.)
– CONTINUED –
