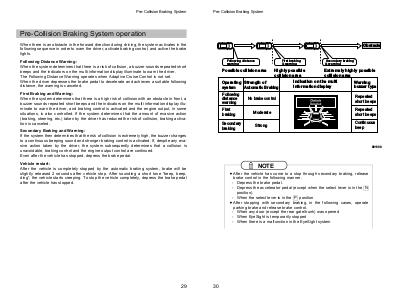

Pre-Collision Braking System
Pre-Collision Braking System operation
When there is an obstacle in the forward direction during driving, the system activates in the
following sequence in order to warn the driver, activate braking control, and active the brake
lights.
Following Distance Warning:
When the system determines that there is a risk of collision, a buzzer sounds repeated short
beeps and the indicators on the multi information display illuminate to warn the driver.
The Following Distance Warning operates when Adaptive Cruise Control is not set.
When the driver depresses the brake pedal to decelerate and achieves a suitable following
distance, the warning is canceled.
First Braking and Warning:
When the system determines that there is a high risk of collision with an obstacle in front, a
buzzer sounds repeated short beeps and the indicators on the multi information display illuminate to warn the driver, and braking control is activated and the engine output, in some
situations, is also controlled. If the system determines that the amount of evasive action
(braking, steering, etc.) taken by the driver has reduced the risk of collision, braking activation is canceled.
Secondary Braking and Warning:
If the system then determines that the risk of collision is extremely high, the buzzer changes
to a continuous beeping sound and stronger braking control is activated. If, despite any evasive action taken by the driver, the system subsequently determines that a collision is
unavoidable, braking control and the engine output control are continued.
Even after the vehicle has stopped, depress the brake pedal.
Vehicle restart:
After the vehicle is completely stopped by the automatic braking system, brake will be
slightly released 2 seconds after vehicle stop. After sounding a short tone “beep, beep,
ding”, the vehicle starts creeping. To stop the vehicle completely, depress the brake pedal
after the vehicle has stopped.
