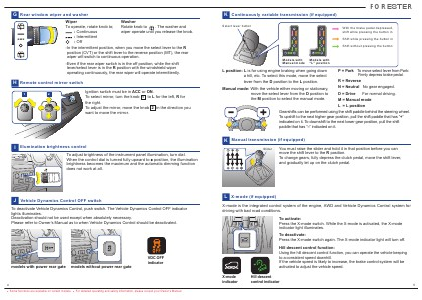

G Rear window wiper and washer
Wiper
To operate, rotate knob to;
: Continuous
: Intermittent
: Off
Washer
Rotate knob to
. The washer and
wiper operate until you release the knob.
-In the intermittent position, when you move the select lever to the R
position (CVT) or the shift lever to the reverse position (MT), the rear
wiper will switch to continuous operation.
-Even if the rear wiper switch is in the off position, while the shift
lever/select lever is in the R position with the windshield wiper
operating continuously, the rear wiper will operate intermittently.
H Remote control mirror switch
1
2
Ignition switch must be in ACC or ON.
To select mirror, turn the knob 1 to L for the left, R for
the right.
To adjust the mirror, move the knob 2 in the direction you
want to move the mirror.
I Illumination brightness control
To adjust brightness of the instrument panel illumination, turn dial.
When the control dial is turned fully upward to position, the illumination
brightness becomes the maximum and the automatic dimming function
does not work at all.
J Vehicle Dynamics Control OFF switch
To deactivate Vehicle Dynamics Control, push switch. The Vehicle Dynamics Control OFF indicator
lights illuminates.
Deactivation should not be used except when absolutely necessary.
Please refer to Owner’s Manual as to when Vehicle Dynamics Control should be deactivated.
models with power rear gate
models without power rear gate
VDC OFF
indicator
4
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
