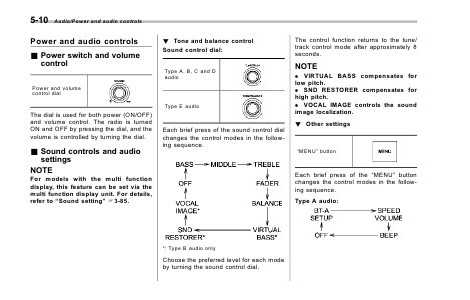

5-10
Audio/Power and audio controls
Power and audio controls
& Power switch and volume
control
! Tone and balance control
Sound control dial:
Type A, B, C and D
audio
Power and volume
control dial
Type E audio
The dial is used for both power (ON/OFF)
and volume control. The radio is turned
ON and OFF by pressing the dial, and the
volume is controlled by turning the dial.
& Sound controls and audio
settings
NOTE
Each brief press of the sound control dial
changes the control modes in the following sequence.
The control function returns to the tune/
track control mode after approximately 8
seconds.
NOTE
. VIRTUAL BASS compensates for
low pitch.
. SND RESTORER compensates for
high pitch.
. VOCAL IMAGE controls the sound
image localization.
! Other settings
“MENU” button
Each brief press of the “MENU” button
changes the control modes in the following sequence.
For models with the multi function
display, this feature can be set via the
multi function display unit. For details,
refer to “Sound setting” F3-85.
Type A audio:
*: Type B audio only
Choose the preferred level for each mode
by turning the sound control dial.
