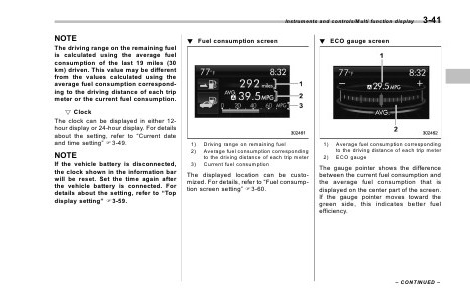

Instruments and controls/Multi function display
NOTE
The driving range on the remaining fuel
is calculated using the average fuel
consumption of the last 19 miles (30
km) driven. This value may be different
from the values calculated using the
average fuel consumption corresponding to the driving distance of each trip
meter or the current fuel consumption.
! Clock
The clock can be displayed in either 12hour display or 24-hour display. For details
about the setting, refer to “Current date
and time setting” F3-49.
NOTE
If the vehicle battery is disconnected,
the clock shown in the information bar
will be reset. Set the time again after
the vehicle battery is connected. For
details about the setting, refer to “Top
display setting” F3-59.
! Fuel consumption screen
1)
2)
3)
Driving range on remaining fuel
Average fuel consumption corresponding
to the driving distance of each trip meter
Current fuel consumption
The displayed location can be customized. For details, refer to “Fuel consumption screen setting” F3-60.
3-41
! ECO gauge screen
1)
2)
Average fuel consumption corresponding
to the driving distance of each trip meter
ECO gauge
The gauge pointer shows the difference
between the current fuel consumption and
the average fuel consumption that is
displayed on the center part of the screen.
If the gauge pointer moves toward the
green side, this indicates better fuel
efficiency.
– CONTINUED –
