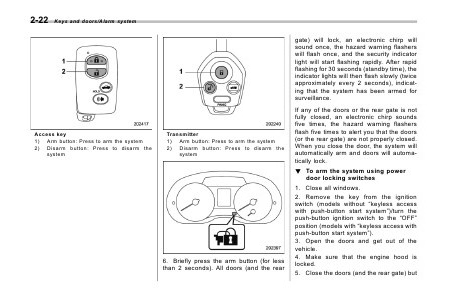

2-22
Keys and doors/Alarm system
gate) will lock, an electronic chirp will
sound once, the hazard warning flashers
will flash once, and the security indicator
light will start flashing rapidly. After rapid
flashing for 30 seconds (standby time), the
indicator lights will then flash slowly (twice
approximately every 2 seconds), indicating that the system has been armed for
surveillance.
Access key
1) Arm button: Press to arm the system
2) Disarm button: Press to disarm the
system
Transmitter
1) Arm button: Press to arm the system
2) Disarm button: Press to disarm the
system
6. Briefly press the arm button (for less
than 2 seconds). All doors (and the rear
If any of the doors or the rear gate is not
fully closed, an electronic chirp sounds
five times, the hazard warning flashers
flash five times to alert you that the doors
(or the rear gate) are not properly closed.
When you close the door, the system will
automatically arm and doors will automatically lock.
! To arm the system using power
door locking switches
1. Close all windows.
2. Remove the key from the ignition
switch (models without “keyless access
with push-button start system”)/turn the
push-button ignition switch to the “OFF”
position (models with “keyless access with
push-button start system”).
3. Open the doors and get out of the
vehicle.
4. Make sure that the engine hood is
locked.
5. Close the doors (and the rear gate) but
