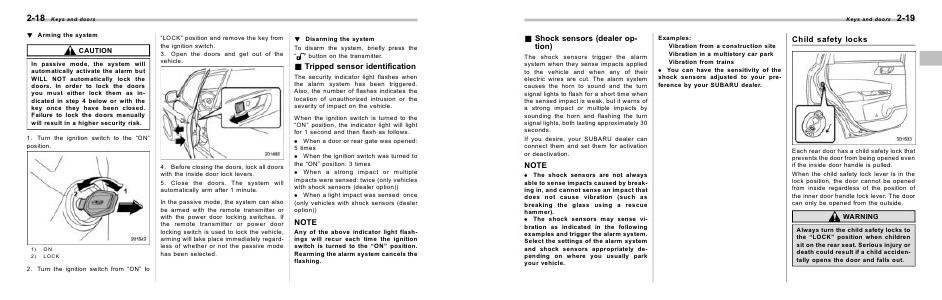

2-18
Keys and doors
! Arming the system
CAUTION
In passive mode, the system will
automatically activate the alarm but
WILL NOT automatically lock the
doors. In order to lock the doors
you must either lock them as indicated in step 4 below or with the
key once they have been closed.
Failure to lock the doors manually
will result in a higher security risk.
“LOCK” position and remove the key from
the ignition switch.
3. Open the doors and get out of the
vehicle.
4. Before closing the doors, lock all doors
with the inside door lock levers.
5. Close the doors. The system will
automatically arm after 1 minute.
ON
LOCK
2. Turn the ignition switch from “ON” to
& Tripped sensor identification
The security indicator light flashes when
the alarm system has been triggered.
Also, the number of flashes indicates the
location of unauthorized intrusion or the
severity of impact on the vehicle.
1. Turn the ignition switch to the “ON”
position.
1)
2)
! Disarming the system
To disarm the system, briefly press the
“ ” button on the transmitter.
In the passive mode, the system can also
be armed with the remote transmitter or
with the power door locking switches. If
the remote transmitter or power door
locking switch is used to lock the vehicle,
arming will take place immediately regardless of whether or not the passive mode
has been selected.
When the ignition switch is turned to the
“ON” position, the indicator light will light
for 1 second and then flash as follows.
. When a door or rear gate was opened:
5 times
. When the ignition switch was turned to
the “ON” position: 3 times
. When a strong impact or multiple
impacts were sensed: twice (only vehicles
with shock sensors (dealer option))
. When a light impact was sensed: once
(only vehicles with shock sensors (dealer
option))
NOTE
Any of the above indicator light flashings will recur each time the ignition
switch is turned to the “ON” position.
Rearming the alarm system cancels the
flashing.
