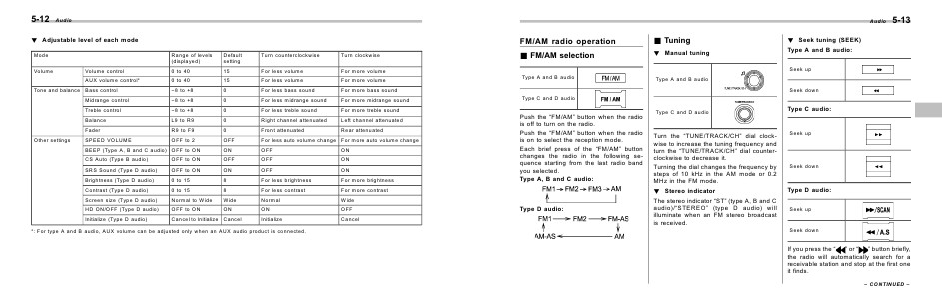

Audio
FM/AM radio operation
& Tuning
& FM/AM selection
! Manual tuning
5-13
! Seek tuning (SEEK)
Type A and B audio:
Seek up
Type A and B audio
Type A and B audio
Seek down
Type C and D audio
Push the “FM/AM” button when the radio
is off to turn on the radio.
Push the “FM/AM” button when the radio
is on to select the reception mode.
Each brief press of the “FM/AM” button
changes the radio in the following sequence starting from the last radio band
you selected.
Type A, B and C audio:
Type D audio:
Type C and D audio
Turn the “TUNE/TRACK/CH” dial clockwise to increase the tuning frequency and
turn the “TUNE/TRACK/CH” dial counterclockwise to decrease it.
Turning the dial changes the frequency by
steps of 10 kHz in the AM mode or 0.2
MHz in the FM mode.
! Stereo indicator
The stereo indicator “ST” (type A, B and C
audio)/“STEREO” (type D audio) will
illuminate when an FM stereo broadcast
is received.
Type C audio:
Seek up
Seek down
Type D audio:
Seek up
Seek down
If you press the “ ” or “ ” button briefly,
the radio will automatically search for a
receivable station and stop at the first one
it finds.
– CONTINUED –
