4-4
Climate control

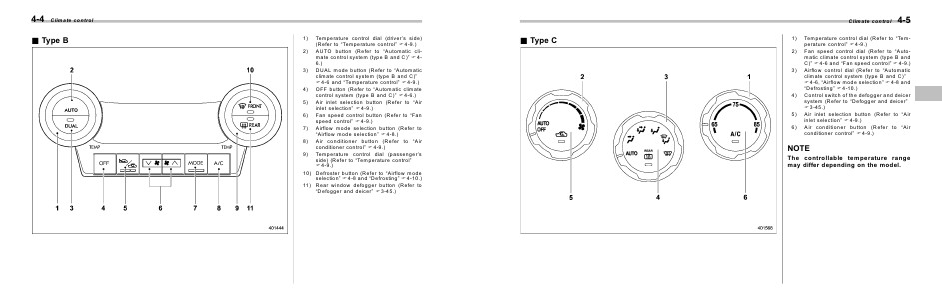

& Type B
1)
Temperature control dial (driver’s side)
(Refer to “Temperature control” F4-9.)
2) AUTO button (Refer to “Automatic climate control system (type B and C)” F46.)
3) DUAL mode button (Refer to “Automatic
climate control system (type B and C)”
F4-6 and “Temperature control” F4-9.)
4) OFF button (Refer to “Automatic climate
control system (type B and C)” F4-6.)
5) Air inlet selection button (Refer to “Air
inlet selection” F4-9.)
6) Fan speed control button (Refer to “Fan
speed control” F4-9.)
7) Airflow mode selection button (Refer to
“Airflow mode selection” F4-8.)
8) Air conditioner button (Refer to “Air
conditioner control” F4-9.)
9) Temperature control dial (passenger’s
side) (Refer to “Temperature control”
F4-9.)
10) Defroster button (Refer to “Airflow mode
selection” F4-8 and “Defrosting” F4-10.)
11) Rear window defogger button (Refer to
“Defogger and deicer” F3-45.)
