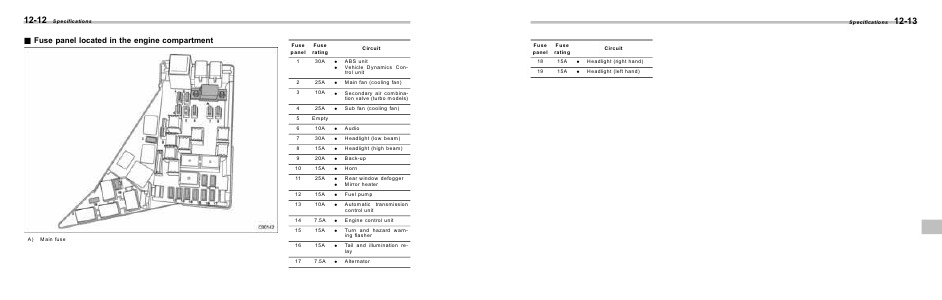

12-12

Specifications

& Fuse panel located in the engine compartment

Fuse
panel

Fuse
rating

1

30A

.
.

ABS unit
Vehicle Dynamics Control unit

2

25A

.

Main fan (cooling fan)

3

10A

.

Secondary air combination valve (turbo models)

4

25A

.

Sub fan (cooling fan)

5

Empty

6

10A

.

Audio

7

30A

.

Headlight (low beam)

8

15A

.

Headlight (high beam)

Circuit

9

20A

.

Back-up

10

15A

.

Horn

11

25A

.
.

Rear window defogger
Mirror heater

12

15A

.

Fuel pump

13

10A

.

Automatic transmission
control unit

14
A)

7.5A

.

Engine control unit

15

15A

.

Turn and hazard warning flasher

16

15A

.

Tail and illumination relay

17

7.5A

.

Alternator

Main fuse
