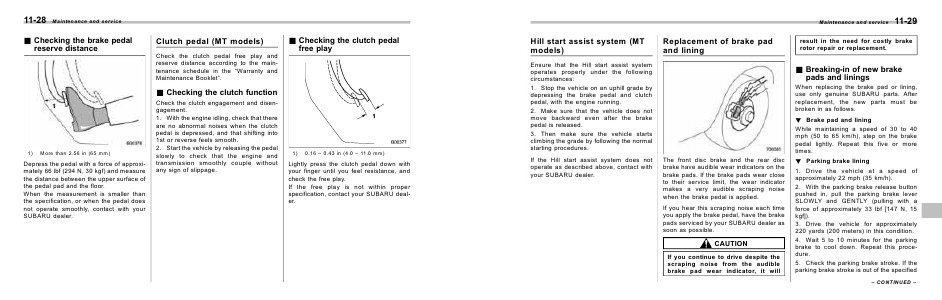

11-28
Maintenance and service
& Checking the brake pedal
reserve distance
Clutch pedal (MT models)
Check the clutch pedal free play and
reserve distance according to the maintenance schedule in the “Warranty and
Maintenance Booklet”.
& Checking the clutch pedal
free play
& Checking the clutch function
1)
More than 2.56 in (65 mm)
Depress the pedal with a force of approximately 66 lbf (294 N, 30 kgf) and measure
the distance between the upper surface of
the pedal pad and the floor.
When the measurement is smaller than
the specification, or when the pedal does
not operate smoothly, contact with your
SUBARU dealer.
Check the clutch engagement and disengagement.
1. With the engine idling, check that there
