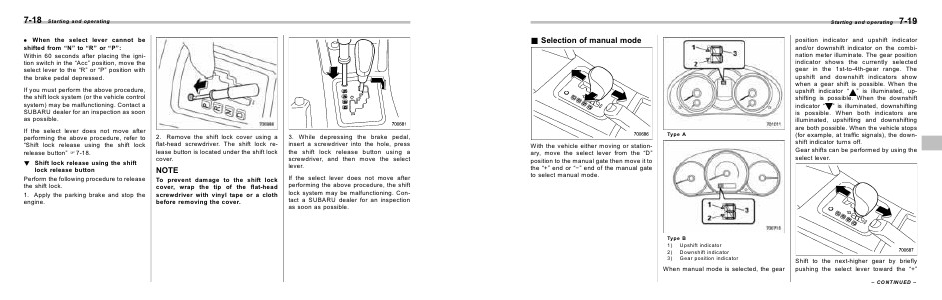

Starting and operating
& Selection of manual mode
Type A
With the vehicle either moving or stationary, move the select lever from the “D”
position to the manual gate then move it to
the “+” end or “−” end of the manual gate
to select manual mode.
Type B
1) Upshift indicator
2) Downshift indicator
3) Gear position indicator
When manual mode is selected, the gear
7-19
position indicator and upshift indicator
and/or downshift indicator on the combination meter illuminate. The gear position
indicator shows the currently selected
gear in the 1st-to-4th-gear range. The
upshift and downshift indicators show
when a gear shift is possible. When the
upshift indicator “ ” is illuminated, upshifting is possible. When the downshift
indicator “ ” is illuminated, downshifting
is possible. When both indicators are
illuminated, upshifting and downshifting
are both possible. When the vehicle stops
(for example, at traffic signals), the downshift indicator turns off.
Gear shifts can be performed by using the
select lever.
Shift to the next-higher gear by briefly
pushing the select lever toward the “+”
– CONTINUED –
