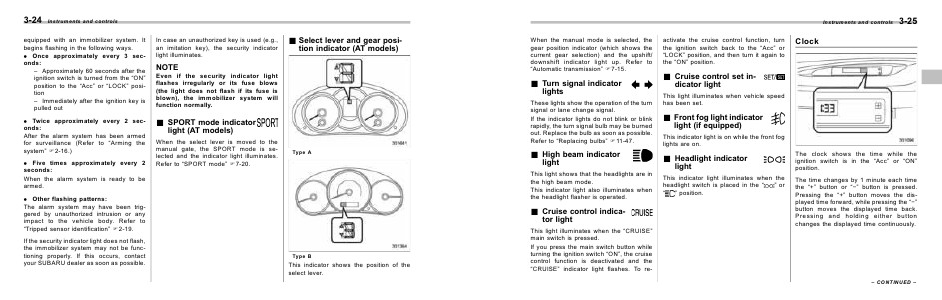

3-24
Instruments and controls
equipped with an immobilizer system. It
begins flashing in the following ways.
. Once approximately every 3 seconds:
– Approximately 60 seconds after the
ignition switch is turned from the “ON”
position to the “Acc” or “LOCK” position
– Immediately after the ignition key is
pulled out
. Twice approximately every 2 seconds:
After the alarm system has been armed
for surveillance (Refer to “Arming the
system” F2-16.)
. Five times approximately every 2
seconds:
When the alarm system is ready to be
armed.
In case an unauthorized key is used (e.g.,
an imitation key), the security indicator
light illuminates.
& Select lever and gear position indicator (AT models)
NOTE
Even if the security indicator light
flashes irregularly or its fuse blows
(the light does not flash if its fuse is
blown), the immobilizer system will
function normally.
& SPORT mode indicator
light (AT models)
When the select lever is moved to the
manual gate, the SPORT mode is selected and the indicator light illuminates.
Refer to “SPORT mode” F7-20.
Type A
. Other flashing patterns:
The alarm system may have been triggered by unauthorized intrusion or any
impact to the vehicle body. Refer to
“Tripped sensor identification” F2-19.
If the security indicator light does not flash,
the immobilizer system may not be functioning properly. If this occurs, contact
your SUBARU dealer as soon as possible.
Type B
This indicator shows the position of the
select lever.
