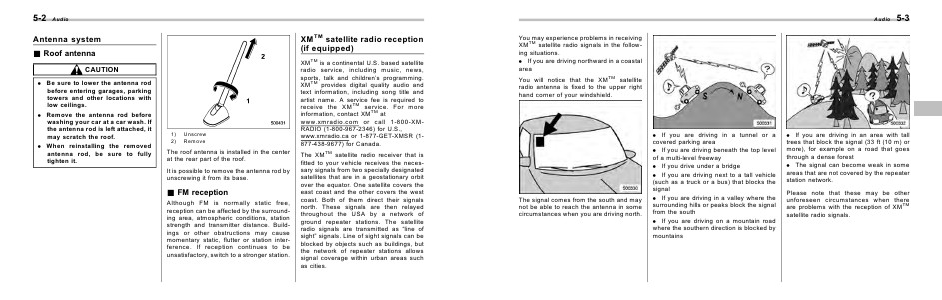

5-2
Audio
XMTM satellite radio reception
(if equipped)
Antenna system
& Roof antenna
CAUTION
. Be sure to lower the antenna rod
before entering garages, parking
towers and other locations with
low ceilings.
. Remove the antenna rod before
washing your car at a car wash. If
the antenna rod is left attached, it
may scratch the roof.
. When reinstalling the removed
antenna rod, be sure to fully
tighten it.
1)
2)
Unscrew
Remove
The roof antenna is installed in the center
at the rear part of the roof.
It is possible to remove the antenna rod by
unscrewing it from its base.
& FM reception
Although FM is normally static free,
reception can be affected by the surrounding area, atmospheric conditions, station
strength and transmitter distance. Buildings or other obstructions may cause
momentary static, flutter or station interference. If reception continues to be
unsatisfactory, switch to a stronger station.
XMTM is a continental U.S. based satellite
radio service, including music, news,
sports, talk and children’s programming.
XMTM provides digital quality audio and
text information, including song title and
artist name. A service fee is required to
receive the XM TM service. For more
information, contact XMTM at
www.xmradio.com or call 1-800-XMRADIO (1-800-967-2346) for U.S.,
www.xmradio.ca or 1-877-GET-XMSR (1877-438-9677) for Canada.
The XMTM satellite radio receiver that is
fitted to your vehicle receives the necessary signals from two specially designated
satellites that are in a geostationary orbit
over the equator. One satellite covers the
east coast and the other covers the west
coast. Both of them direct their signals
north. These signals are then relayed
throughout the USA by a network of
ground repeater stations. The satellite
radio signals are transmitted as “line of
sight” signals. Line of sight signals can be
blocked by objects such as buildings, but
the network of repeater stations allows
signal coverage within urban areas such
as cities.
