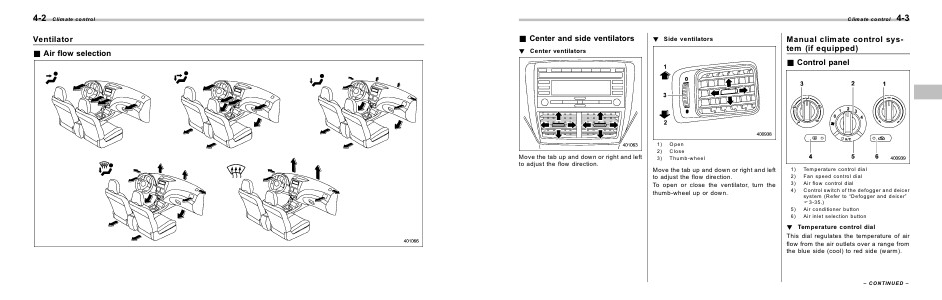

Climate control
& Center and side ventilators
! Side ventilators
! Center ventilators
4-3
Manual climate control system (if equipped)
& Control panel
Move the tab up and down or right and left
to adjust the flow direction.
1)
2)
3)
Open
Close
Thumb-wheel
Move the tab up and down or right and left
to adjust the flow direction.
To open or close the ventilator, turn the
thumb-wheel up or down.
1)
2)
3)
4)
5)
6)
Temperature control dial
Fan speed control dial
Air flow control dial
Control switch of the defogger and deicer
system (Refer to “Defogger and deicer”
F3-35.)
Air conditioner button
Air inlet selection button
! Temperature control dial
This dial regulates the temperature of air
flow from the air outlets over a range from
the blue side (cool) to red side (warm).
– CONTINUED –
