Markers and Controls Displayed on Maps

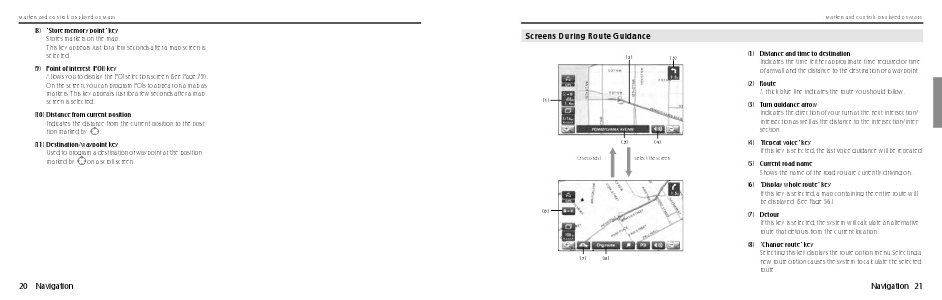

Screens During Route Guidance
(2)
(3)
(1) Distance and time to destination
Indicates the time (either approximate time required or time
of arrival) and the distance to the destination or a waypoint.
(2) Route
A thick blue line indicates the route you should follow.
(1)
(3) Turn guidance arrow
Indicates the direction of your turn at the next intersection/
intersection as well as the distance to the intersection/intersection.
(5)
(5 seconds)
(4)
Select the screen
(4) "Repeat voice" key
If this key is selected, the last voice guidance will be repeated.
(5) Current road name
Shows the name of the road you are currently driving on.
(6) "Display whole route" key
If this key is selected, a map containing the entire route will
be displayed. (See Page 56.)
(6)
(7) Detour
If this key is selected, the system will calculate an alternative
route that detours from the current location.
(7)
(8)
(8) "Change route" key
Selecting this key displays the route option menu. Selecting a
new route option causes the system to calculate the selected
route.
Navigation 21
