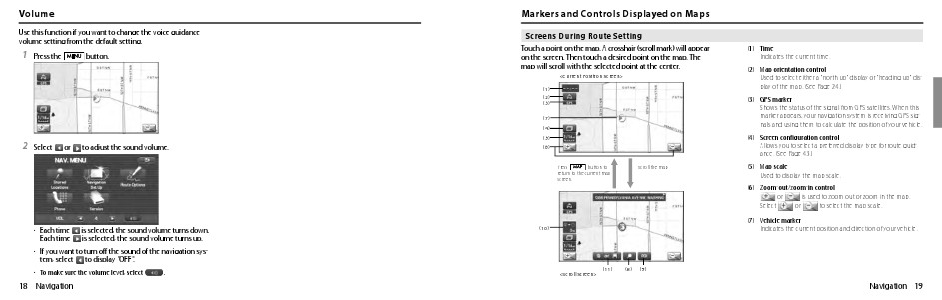

Markers and Controls Displayed on Maps
Screens During Route Setting
Touch a point on the map. A crosshair (scroll mark) will appear
on the screen. Then touch a desired point on the map. The
map will scroll with the selected point at the center.
(1)
(2)
(3)
(1) Time
Indicates the current time.
(2) Map orientation control
Used to select either a "north up" display or "heading up" display of the map. (See Page 24.)
(3) GPS marker
Shows the status of the signal from GPS satellites. When this
marker appears, your navigation system is receiving GPS signals and using them to calculate the position of your vehicle.
(7)
(4)
(4) Screen configuration control
Allows you to select a preferred display type for route guidance. (See Page 43.)
(5)
(6)
Press
button to
return to the current map
screen.
Scroll the map
(5) Map scale
Used to display the map scale.
(6) Zoom-out/zoom-in control
or
is used to zoom out or zoom in the map.
Select
or
to select the map scale.
(7) Vehicle marker
Indicates the current position and direction of your vehicle.
(10)
(11)
(8)
(9)
Navigation 19
