Listening to the radio
(9)
(SETTING)
Select this to display the screen set for the audio. (See Page
158.)
(10)
(BAND)
Each time this is selected the discrimination of the frequency
band (FM1/FM2) changes over.
(11)
(12)

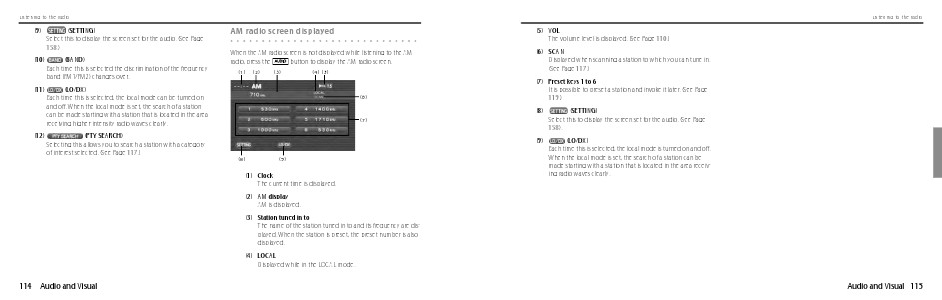

AM radio screen displayed
When the AM radio screen is not displayed while listening to the AM
radio, press the
button to display the AM radio screen.
(1)
(2)
(3)
(4) (5)
(LO/DX)
Each time this is selected, the local mode can be turned on
and off. When the local mode is set, the search of a station
can be made starting with a station that is located in the area
receiving higher-intensity radio waves clearly.
(PTY SEARCH)
Selecting this allows you to search a station with a category
of interest selected. (See Page 117.)
(6)
(7)
(8)
(9)
(1) Clock
The current time is displayed.
(2) AM display
AM is displayed.
(3) Station tuned in to
The name of the station tuned in to and its frequency are displayed. When the station is preset, the preset number is also
displayed.
(4) LOCAL
Displayed while in the LOCAL mode.
114
Audio and Visual
