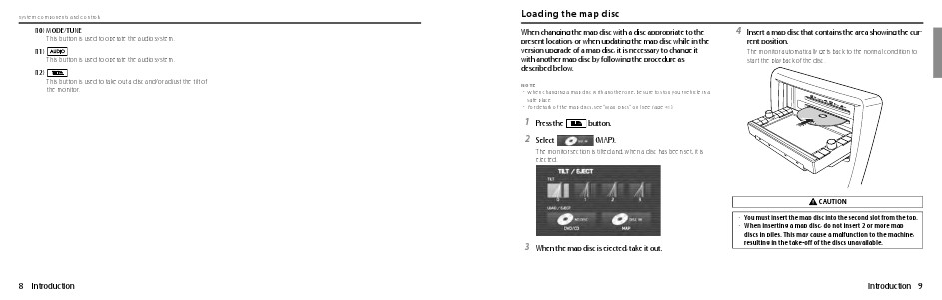

Loading the map disc
When changing the map disc with a disc appropriate to the
present location, or when updating the map disc while in the
version upgrade of a map disc, it is necessary to change it
with another map disc by following the procedure as
described below.
4
Insert a map disc that contains the area showing the current position.
The monitor automatically gets back to the normal condition to
start the playback of the disc.
NOTE
• When changing a map disc with another one, be sure to stop your vehicle in a
safe place.
• For details of the map discs, see "Map Discs" on (See Page 41).
1
Press the
2
Select
button.
(MAP).
The monitor section is tilted and, when a disc has been set, it is
ejected.
CAUTION
3
When the map disc is ejected, take it out.
• You must insert the map disc into the second slot from the top.
• When inserting a map disc, do not insert 2 or more map
discs in piles. This may cause a malfunction to the machine,
resulting in the take-off of the discs unavailable.
Introduction 9
