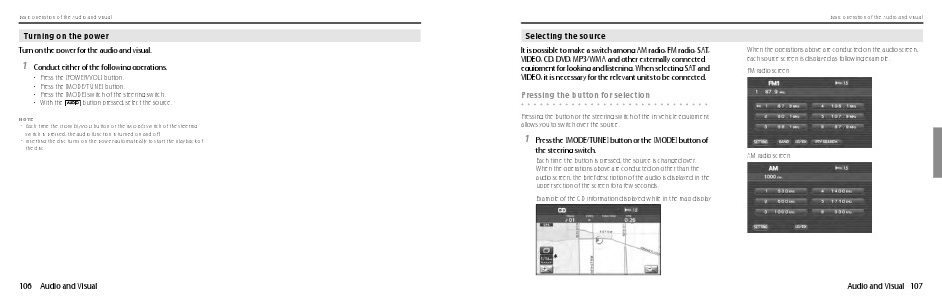

Basic operation of the Audio and Visual
Selecting the source
It is possible to make a switch among AM radio, FM radio, SAT,
VIDEO, CD, DVD, MP3/WMA and other externally connected
equipment for looking and listening. When selecting SAT and
VIDEO, it is necessary for the relevant units to be connected.
When the operations above are conducted on the audio screen,
each source screen is displayed as following example.
FM radio screen
Pressing the button for selection
Pressing the button or the steering switch of the in-vehicle equipment
allows you to switch over the source.
1
Press the [MODE/TUNE] button or the [MODE] button of
the steering switch.
Each time the button is pressed, the source is changed over.
When the operations above are conducted on other than the
audio screen, the brief description of the audio is displayed in the
upper section of the screen for a few seconds.
AM radio screen
Example of the CD information displayed while in the map display
Audio and Visual 107
