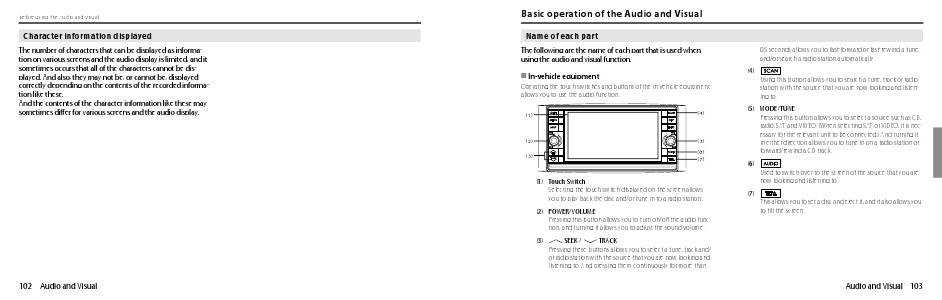

Basic operation of the Audio and Visual
Name of each part
0.5 seconds allows you to fast-forward or fast-rewind a tune,
and/or search a radio station automatically.
The following are the name of each part that is used when
using the audio and visual function.
(4)
I In-vehicle equipment
Using this button allows you to search a tune, track or radio
station with the source that you are now looking and listening to.
Operating the touch switches and buttons of the in-vehicle equipment
allows you to use the audio function.
(1)
(4)
(2)
(5)
(3)
(6)
(7)
(1) Touch Switch
Selecting the touch switch displayed on the screen allows
you to play back the disc and/or tune in to a radio station.
(2) POWER/VOLUME
Pressing this button allows you to turn on/off the audio function, and turning it allows you to adjust the sound volume.
(3)
(5) MODE/TUNE
Pressing this button allows you to select a source such as CD,
radio, SAT and VIDEO. (When selecting SAT or VIDEO, it is necessary for the relevant unit to be connected.) And turning it
in either direction allows you to tune in on a radio station or
forward/rewind a CD track.
(6)
Used to switch over to the screen of the source that you are
now looking and listening to.
(7)
This allows you to set a disc and eject it, and it also allows you
to tilt the screen.
SEEK /
TRACK
Pressing these buttons allows you to select a tune, track and/
or radio station with the source that you are now looking and
listening to. And pressing them continuously for more than
Audio and Visual 103
